CSN 221657

CSN 221657

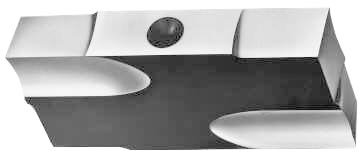

Two-sided spot-facing cutters

 HSS
-

  Workmanship:  Material: efficient high-speed steel HSS.
Two cutting edges, two sided.

  Usability:  Two-sided spot facing cutters for facing supporting surfaces for coupling parts according to CSN 021020 in steel, cast iron, and other metallic materials. For clamping are used the arbors CSN 241217.
Range:  Ø 61,00 ÷ 112,00 mm
Manufacturing Mode:  V Surface Treatment:




Ordering

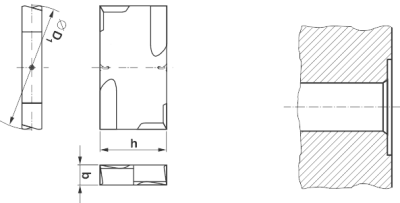

Code		 Ø D1
mm		 b
mm		 h
mm		 Even
teeth		 Holder
CSN 241217		 Packing
pce		 Weight
kg/pce
C570615F000S 61 10 30 2 + 2 33 1 pc 0,80
C570675F000S 67 10 30 2 + 2 36 1 pc 0,85
C570715F000S 71 10 30 2 + 2 39 1 pc 0,90
C570755F000S 75 10 30 2 + 2 42 1 pc 0,90
C570806F000S 80 12 36 2 + 2 45 1 pc 0,91
C570906F000S 90 12 36 2 + 2 48 1 pc 0,93
C570956F000S 95 12 36 2 + 2 52 1 pc 0,95
C571056F000S 105 12 36 2 + 2 56 1 pc 1,00
C571126F000S 112 12 36 2 + 2 62 1 pc 1,00
Order example:  C570906F000S     5 pcs
