ZVSE 221332

ZVSE 221332

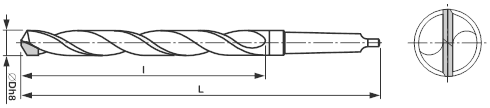

Carbide tipped twist morse taper shank drills

 SK
-

  Usability:  Body from alloy stell, toughened. Soldered-in plate of abrasion-resistant soild carbide. Solder melting temperature 920 °C.
Drills for toughened stells, hardness up to 40 HRC, and abrasive materials.
Range:  Ø 8,0 ÷ 37,0 mm
Manufacturing Mode:  F Surface Treatment:

ØD= 8,0÷13,0
MORSE 1		 ØD= 14,0÷19,0
MORSE 2		 ØD= 20,0÷28,0
MORSE 3		 ØD= 29,0÷37,0
MORSE 4




Ordering
Code		 Ø D
mm		 L
mm		 l
mm		 Packing
pce		 Weight
kg/pce
F320800F000S 8,00 130 40 1 pc 0,06
F320850F000S 8,50 135 45 1 pc 0,065
F320900F000S 9,00 135 45 1 pc 0,07
F320950F000S 9,50 135 45 1 pc 0,07
F321000F000S 10,00 140 50 1 pc 0,075
F321050F000S 10,50 140 50 1 pc 0,08
F321100F000S 11,00 140 50 1 pc 0,08
F321150F000S 11,50 146 56 1 pc 0,085
F321200F000S 12,00 146 56 1 pc 0,09
F321300F000S 13,00 146 56 1 pc 0,1
F321400F000S 14,00 168 63 1 pc 0,185
F321500F000S 15,00 168 63 1 pc 0,195
F321600F000S 16,00 175 71 1 pc 0,21
F321700F000S 17,00 175 72 1 pc 0,225
F321800F000S 18,00 185 80 1 pc 0,245
F321900F000S 19,00 185 80 1 pc 0,26
F322000F000S 20,00 215 90 1 pc 0,44
F322100F000S 21,00 215 90 1 pc 0,45
F322200F000S 22,00 215 90 1 pc 0,475
F322300F000S 23,00 225 100 1 pc 0,505
F322400F000S 24,00 225 100 1 pc 0,535
F322500F000S 25,00 225 100 1 pc 0,555
F322600F000S 26,00 262 112 1 pc 0,7
F322700F000S 27,00 262 112 1 pc 0,725
F322800F000S 28,00 262 112 1 pc 0,785
F322900F000S 29,00 272 125 1 pc 1,04
F323000F000S 30,00 272 125 1 pc 1,055
F323100F000S 31,00 272 125 1 pc 1,1
F323200F000S 32,00 272 125 1 pc 1,065
F323300F000S 33,00 290 140 1 pc 1,225
F323400F000S 34,00 290 140 1 pc 1,28
F323500F000S 35,00 290 140 1 pc 1,295
F323600F000S 36,00 290 140 1 pc 1,345
F323700F000S 37,00 310 160 1 pc 1,42
Order example:  F322200F000S     5 pcs
