CSN 241217

CSN 241217

Arbors for facing cutters

 HCS
-

  Workmanship:  Constructional steel, case-hardened.

  Usability:  Arborsw are used for clamping spot-facing cutters to CSN 221657. Diameter Ød is determined according to middle series of holes for screws CSN 021050.
Range:  Ø 33,00 ÷ 62,00 mm
Surface Treatment:

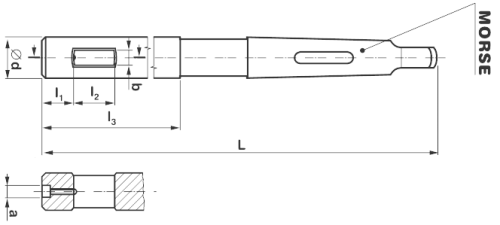

Ordering
Code		 Ø d
mm		 l1
mm		 l2
mm		 b
mm		 a
mm		 l3
mm		 L
mm		 MORSE Spot-facing
tool
CSN 221657		 Packing
pce		 Weight
kg/pce
D173304F000S 33 30 30 10 M10 150 355 4 61 1 pc 2,2
D173604F000S 36 34 30 10 M10 160 365 4 67 1 pc 2,5
D173904F000S 39 36 30 10 M10 170 375 4 71 1 pc 3,05
D174205F000S 42 40 30 10 M10 180 400 5 75 1 pc 4,45
D174505F000S 45 42 36 12 M12 190 425 5 80 1 pc 5,3
D174805F000S 48 45 36 12 M12 200 450 5 90 1 pc 5,75
D175205F000S 52 48 36 12 M12 212 475 5 95 1 pc 6,9
D175605F000S 56 53 36 12 M12 236 500 5 105 1 pc 8,1
D176205F000S 62 60 36 12 M12 250 530 5 112 1 pc 11,5
Order example:  D174805F000S     5 pcs
