DIN 220

CSN 221435

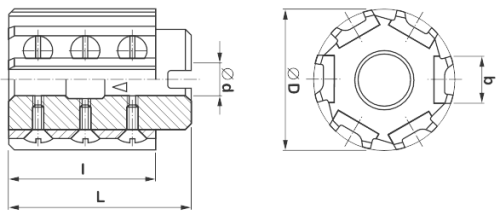

Shell built-up reamers
DIN 220

  Workmanship:  Material of blades: efficient high-speed steel HSS.
Taper clamping hole 1:30. Body of reamers from construction steel. Reamers are produced for holes with size tolerances H7 and H8, contingently according customer wish. Exchangeable blades are also delivered as spare parts.

  Usability:  Machine reaming of holes in ferrous and non-ferrous metals, their alloys and plastics. For clamping, use arbors CSN 241210 - DIN 217.

Range:  Ø 100,00 ÷  150,00 mm   H7, H8
Manufacturing Mode:  F Surface Treatment:




Order
code		 Ø D
mm		 L
mm		 l
mm		 Ø d
mm		 b
mm		 Teeth
 Package
pcs		 Weight
kg/pce
B35100XF000S 100 90 71 40 20 8 1 3,54
B35105XF000S 105 90 71 40 20 8 1 3,95
B35110XF000S 110 90 71 40 20 8 1 4,39
B35115XF000S 115 100 80 50 25 8 1 5,1
B35120XF000S 120 100 80 50 25 8 1 5,64
B35125XF000S 125 100 80 50 25 8 1 6,19
B35130XF000S 130 100 80 50 25 10 1 6,9
B35140XF000S 140 100 80 50 25 10 1 8,21
B35150XF000S 150 100 80 50 25 10 1 9,5
Example of order:  B351007F000S     5 pcs          X=(7=H7; 8=H8; 1=H11)
