CSN 221429 - DIN 212 Form E

CSN 221429

Quick-spiral reamers with straight shank

 HSS
DIN 212 Form E

  Workmanship:  Material: efficient high-speed steel HSS.
Teeth in left-hand spiral, tool sizes up to Ø D = 5,0 mm are made with helping point. Usually the tool is produced for holes with size tolerances H8.

  Usability:  Suitable for reaming clear holes, deeper holes or interrupted holes in materials which make long chips, for example steels with strenght to 500 N/mm2, copper alloys, aluminium alloys, and thermoplastics.
Range:  Ø 3,00 ÷ 16,00 mm   (tolerance H8)
Manufacturing Mode:  V (D< 5,9 mm)
F (D< 6,0 mm)		 Surface Treatment:




Ordering

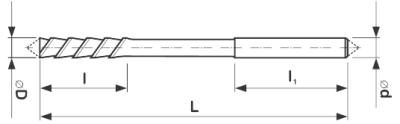

Code		 Ø D
mm		 L
mm		 l
mm		 l1
mm		 Ø d
mm		 Even
teeth		 Packing
pce		 Weight
kg/pce
B290608F000S 6,0 93 26 36 6,0 2 1 ks 0,016
B290708F000S 7,0 109 31 40 7,0 2 1 ks 0,028
B290808F000S 8,0 117 33 42 8,0 2 1 ks 0,035
B290908F000S 9,0 125 36 44 9,0 2 1 ks 0,050
B291008F000S 10,0 133 38 46 10,0 2 1 ks 0,064
B291108F000S 11,0 142 41 46 10,0 2 1 ks 0,085
B291208F000S 12,0 151 44 46 10,0 2 1 ks 0,100
B291308F000S 13,0 151 44 46 10,0 2 1 ks 0,120
B291408F000S 14,0 160 47 50 12,5 3 1 ks 0,160
B291508F000S 15,0 162 50 50 12,5 3 1 ks 0,168
B291608F000S 16,0 170 52 50 12,5 3 1 ks 0,180
Order example:  B291008F000S     5 pcs
